WLL:

24t

Type of Lifting Beam

FIXED LIFTING BEAM

Certification

SUPPLIED WITH TEST CERTIFICATION

COMPLIANT WITH STANDARDS

BSEN 13155:2020

PAINTING FINISH

HIGH VISIBILITY YELLOW

COMPLETED PROJECT

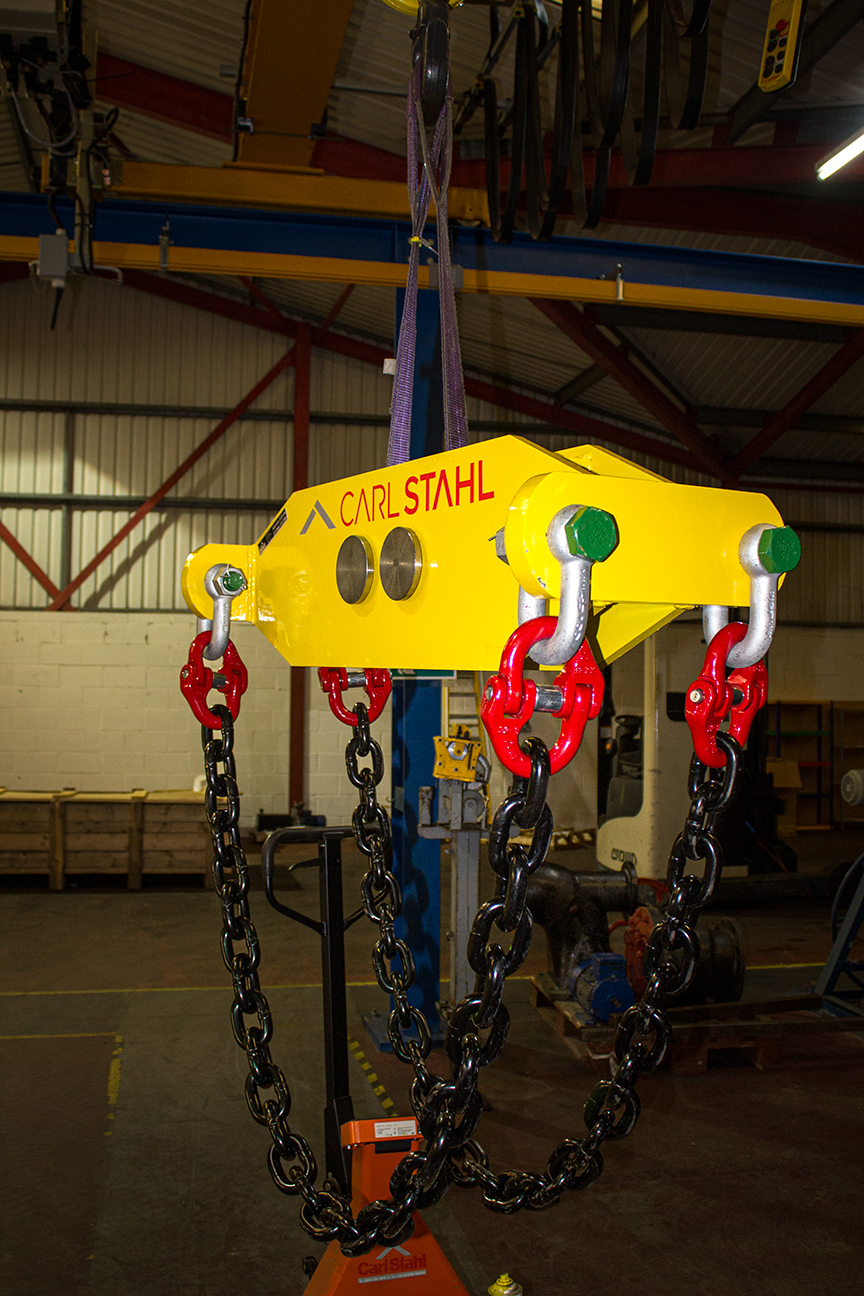

24t Custom Fixed Lifting Beam

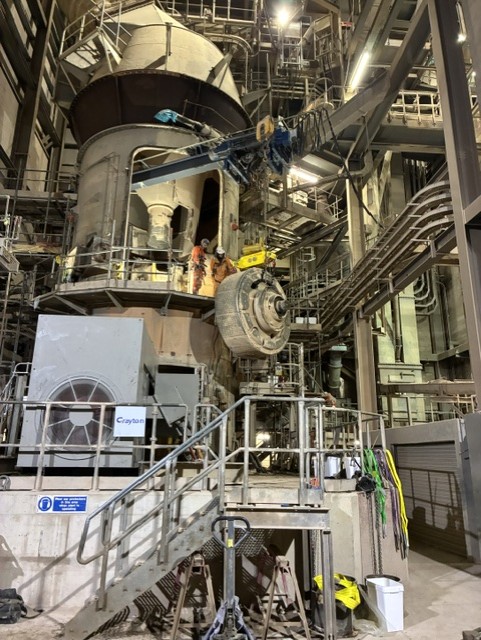

This bespoke 24 tonne fixed lifting beam was designed and manufactured by Carl Stahl Fabrication to support the safe removal and installation of heavy industrial components within a demanding process plant environment. Engineered for high-capacity lifting operations, the beam provides a secure and stable lifting arrangement where precise load control is essential.

Manufactured from high-strength structural steel, the fabricated beam incorporates multiple lifting points to accommodate different lifting configurations and improve load distribution during operation. The compact design allows the beam to be utilised within restricted access areas while maintaining safe lifting practices.

Finished in a high-visibility yellow coating for improved on-site safety and identification, the lifting beam was supplied complete with proof load testing and certification in accordance with BS EN 13155 requirements.

24 Tonne Fixed Lifting Beam Overview

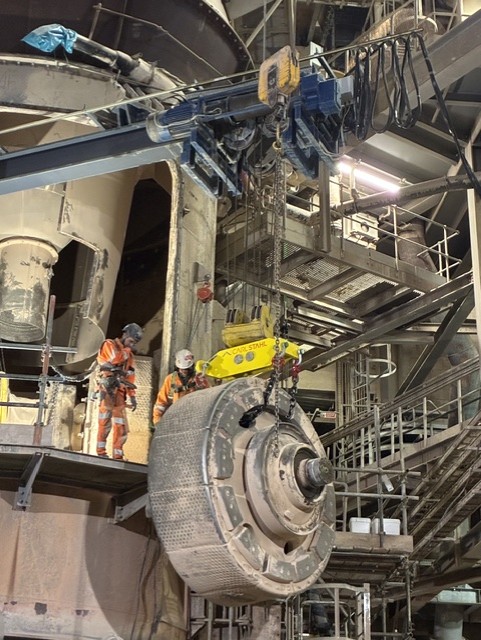

The completed project delivered a heavy-duty lifting solution capable of safely handling large industrial components during maintenance, inspection and replacement operations. The multiple lifting point arrangement provides flexibility when configuring lifts while helping to maintain load stability throughout the lifting process.

Designed and fabricated in the UK by Carl Stahl Fabrication, the beam combines robust construction, operational reliability and long-term durability. All bespoke lifting equipment can be supplied with proof load testing, certification and supporting technical documentation to meet operational and compliance requirements.

This bespoke lifting beam was designed and manufactured by Carl Stahl Fabrication as part of our bespoke lifting beam service.

TECHNICAL SPECIFICATIONS

Safe Working Load (WLL)

24 Tonne / 24000KG

Overall Length

1500 mm

Overall Width

100 mm

Crane Hook to Lifting Point

N/A

Adjustment Positions

N/A

Lifting Points

Grade 80 Duke Connectors

Design Standard

Finish

High Visibility Yellow

Certification

LOLER/PUWER DECLERATION OF CONFORMITY

PROJECT GALLERY
