WLL:
8 Tonnes
Type of Lifting Beam
ADJUSTABLE LIFTING BEAM
Certification
SUPPLIED WITH TEST CERTIFICATION
COMPLIANT WITH STANDARDS
BSEN 13155:2020
PAINTING FINISH
HIGH VISIBILITY YELLOW
COMPLETED PROJECT
8t Adjustable Lifting Beam
This bespoke 8 tonne adjustable lifting beam was designed and manufactured by Carl Stahl Fabrication for a client requiring greater flexibility when lifting loads of varying dimensions and weight distributions. The beam features multiple adjustable lifting points, allowing the lifting configuration to be adapted to suit different load centres and operational requirements.
Manufactured from high-strength structural steel, the fabricated lifting beam was finished in a high-visibility yellow coating for improved on-site safety and equipment identification. The assembly was supplied with proof load testing and supporting certification in accordance with BS EN 13155 requirements.
8 Tonne Adjustable Lifting Beam Overview
The completed project delivered a versatile lifting beam capable of accommodating a wide range of load geometries and lifting configurations. Adjustable suspension positions enable operators to optimise load balance, improve stability and maintain safer lifting practices during routine handling operations.
Designed and fabricated in the UK by Carl Stahl Fabrication, the beam combines durability, flexibility and ease of adjustment. All bespoke lifting equipment can be supplied with proof load testing, certification and technical documentation to support safe operation and compliance requirements.
TECHNICAL SPECIFICATIONS
Safe Working Load (WLL)
8 Tonne / 8000KG
Overall Length
3320 mm
Overall Width
2124 mm
Crane Hook to Lifting Point
1055 mm
Adjustment Positions
50 mm & 300 mm
Lifting Points
Grade 80 Duke Hooks
Design Standard
Finish
High Visibility Yellow
Certification
LOLER/PUWER DECLERATION OF CONFORMITY

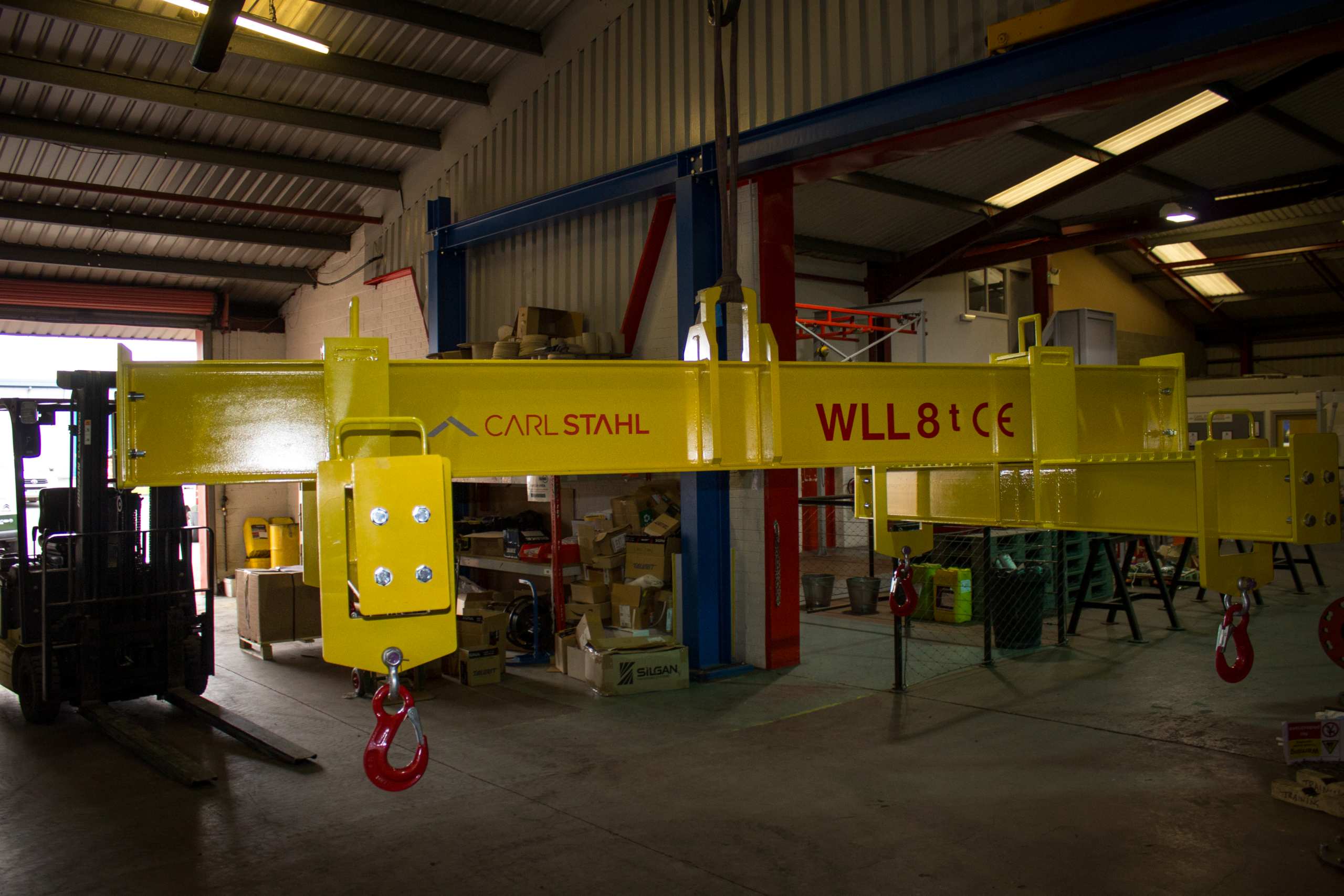

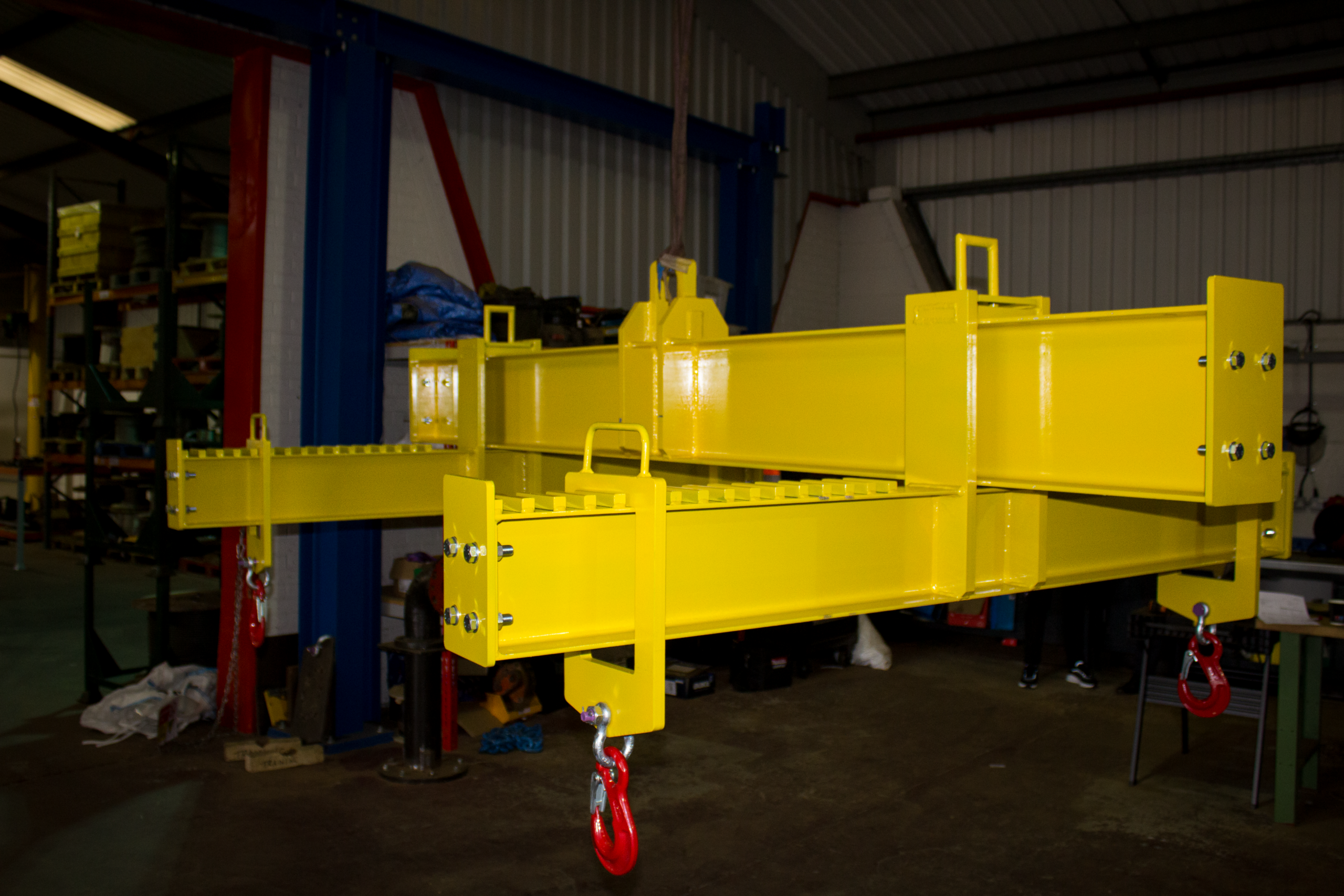

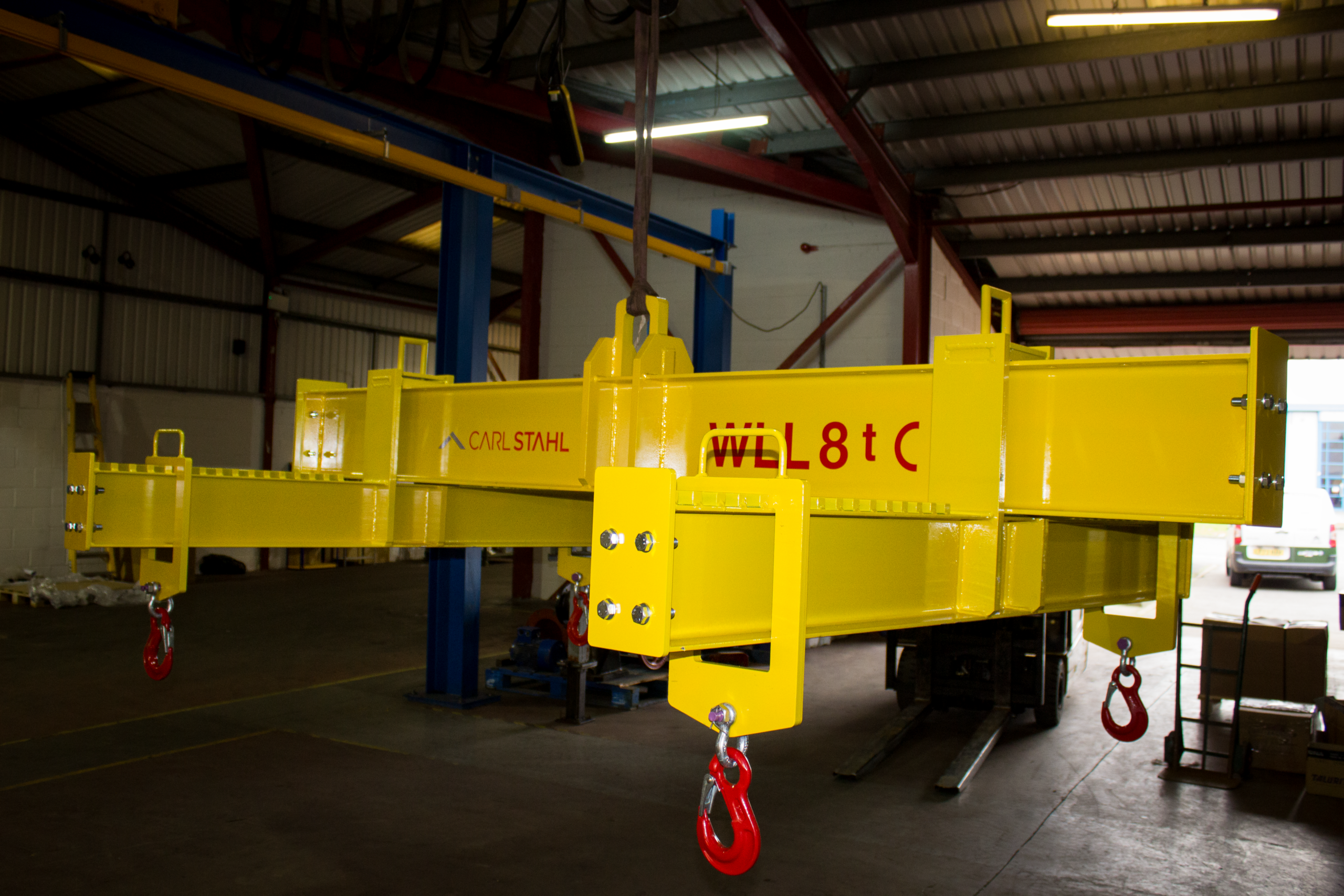

PROJECT GALLERY
