WLL:
2 TONNE
Type of Lifting Beam
ADJUSTABLE H BEAM
Certification
SUPPLIED WITH TEST CERTIFICATION
COMPLIANT WITH STANDARDS
BSEN 13155:2020
PAINTING FINISH
HIGH VISIBILITY YELLOW
COMPLETED PROJECT

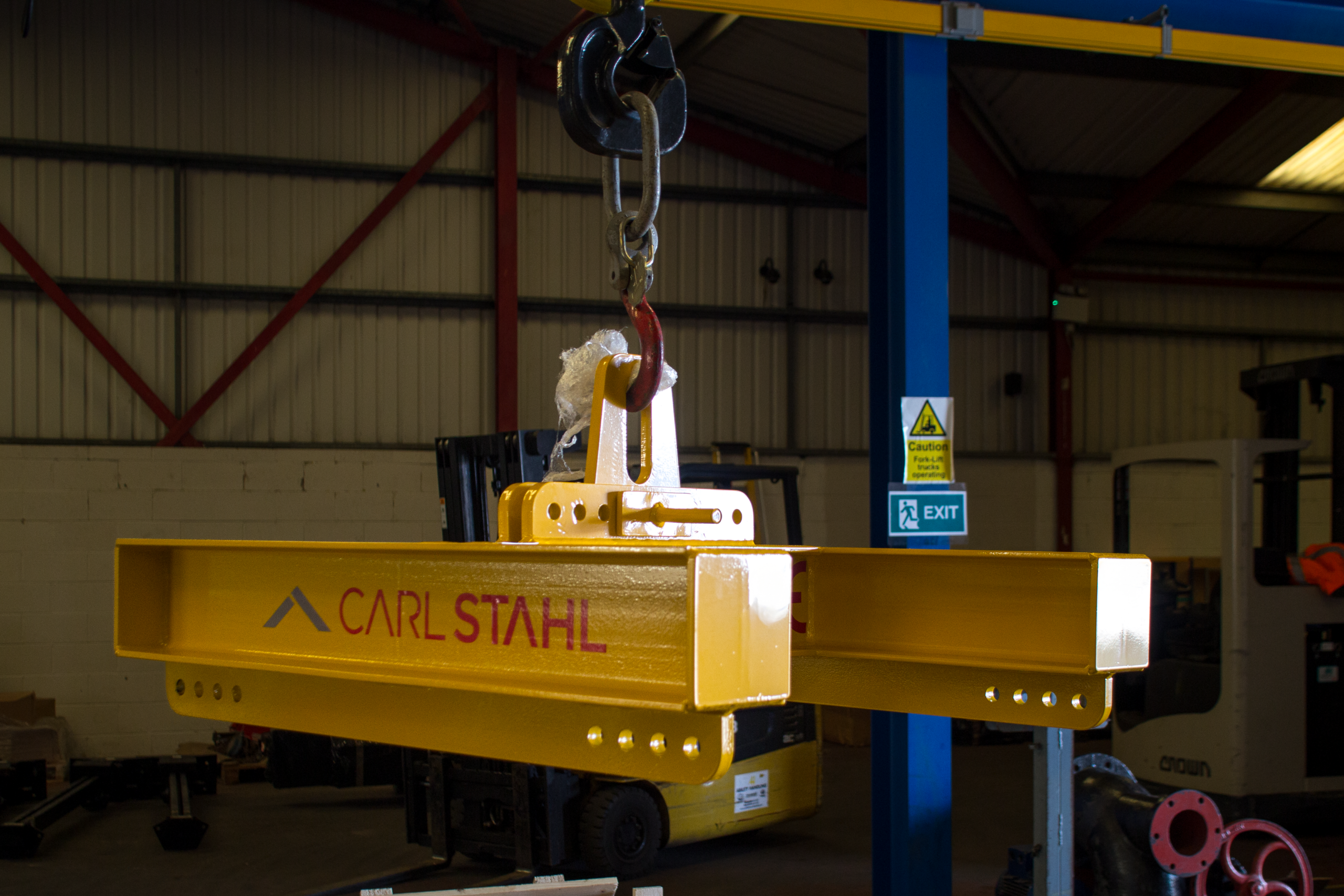

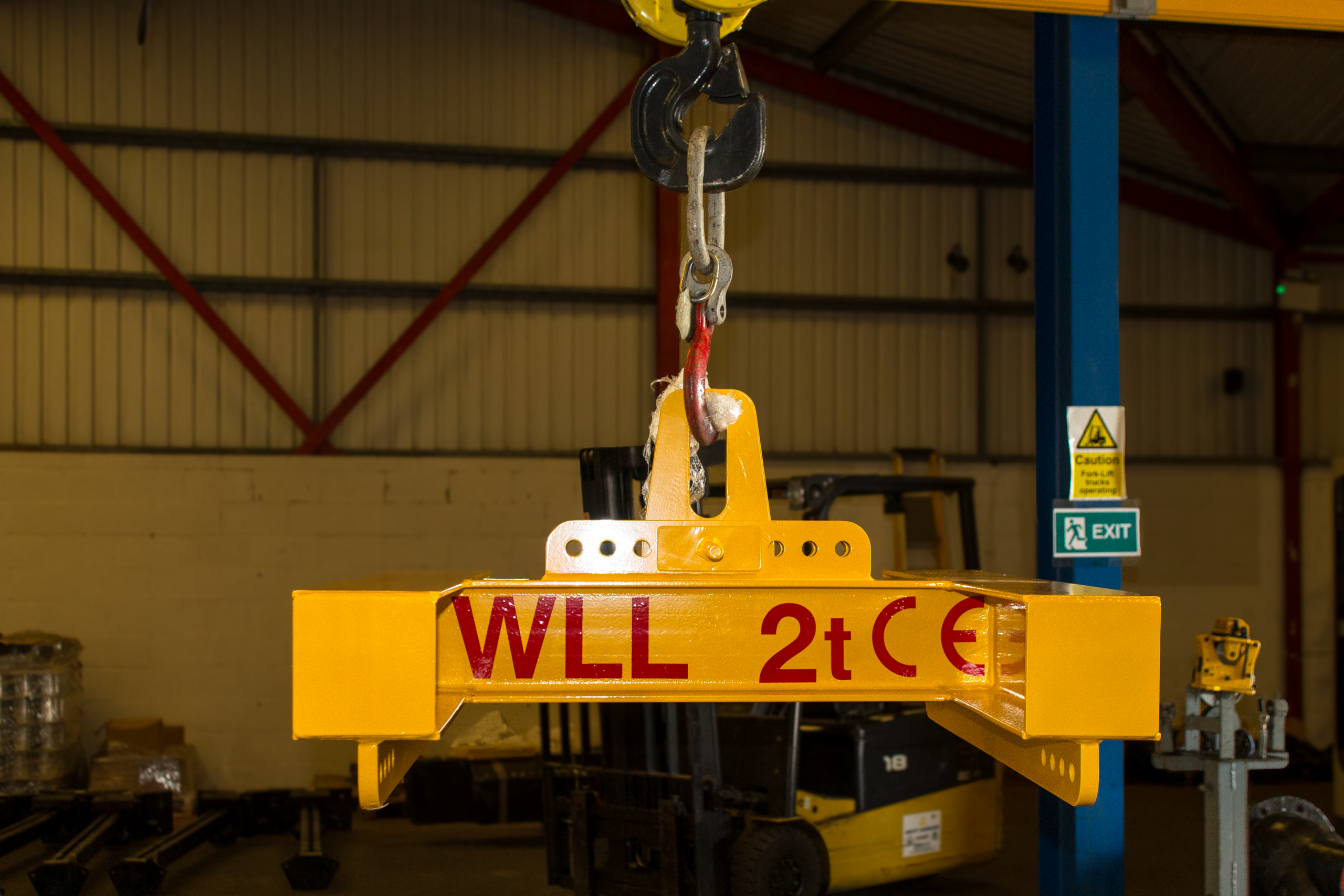

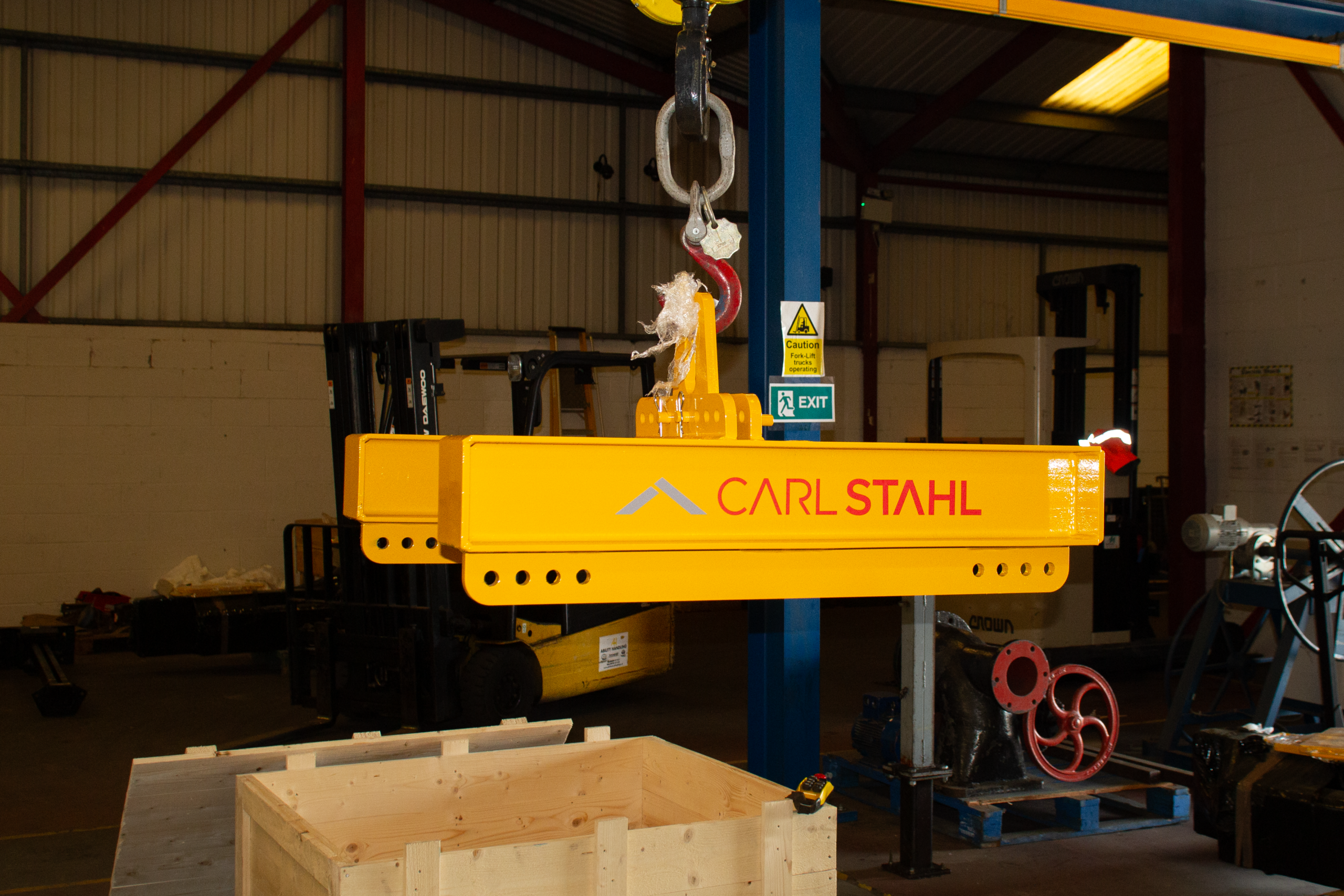

2t Adjustable H-Lifting Beam
This bespoke 2 tonne adjustable H-lifting beam was designed and manufactured by Carl Stahl Fabrication to provide stable and controlled lifting for specialised material handling applications. Engineered for flexibility and precision, the beam allows operators to adapt lifting positions to suit varying load dimensions and centre-of-gravity requirements.
Manufactured from high-strength structural steel, the fabricated H-beam construction delivers dependable lifting performance, durability and long-term reliability across industrial environments. The assembly was finished in a high-visibility yellow coating to improve on-site safety and equipment identification during operation.
Supplied complete with adjustable lifting points and integrated suspension positions, the beam was proof load tested and certified in accordance with BS EN 13155 requirements to ensure safe and compliant lifting operations.
2 Tonne Adjustable H-Lifting Beam Overview
The completed project delivered a versatile adjustable H-lifting beam engineered to improve load stability and lifting flexibility across a range of handling applications. The adjustable design enables operators to modify lifting positions for safer and more balanced load control during operation.
Designed and fabricated in the UK by Carl Stahl Fabrication, the beam combines robust construction, adaptability and dependable lifting performance. All bespoke lifting equipment can be supplied with proof load testing, certification and supporting technical documentation to meet operational and compliance requirements.
This bespoke lifting beam was designed and manufactured by Carl Stahl Fabrication as part of our bespoke lifting beam service.
TECHNICAL SPECIFICATIONS
Safe Working Load (WLL)
2 Tonne / 2000KG
Overall Length
1500 mm
Overall Width
100 mm
Crane Hook to Lifting Point
400 mm
Adjustment Positions
660 mm - 930 mm
Lifting Points
To suit 3.25t Green Pin Shackles
Design Standard
Finish
High Visibility Yellow
Certification
LOLER/PUWER DECLERATION OF CONFORMITY
PROJECT GALLERY
Related Projects

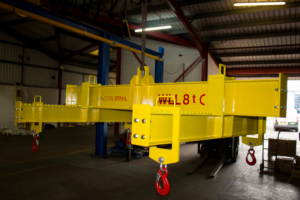

Designed for flexible load handling applications, this bespoke adjustable spreader beam provides dependable lifting performance, improved stability and adaptable lifting point positioning across industrial environments.

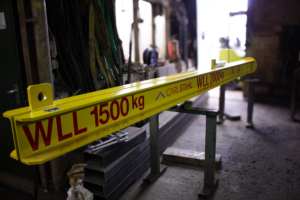

Designed for handling loads across multiple weight capacities, this adjustable lifting beam provides flexibility, durability and reliable lifting performance in demanding workshop environments.
A bespoke 2 tonne lifting beam engineered for a customer requiring a compact lifting solution with dependable load control and enhanced operational safety.

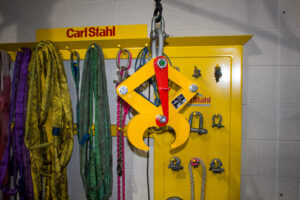

Custom rail clamps manufactured for specialised lifting and material handling applications, delivering secure attachment, dependable performance and long-term durability in service.
